Pyrometer Assembly

Pyrometer Assembly
Pyrometer Assembly
Product Code : 24
Product Description

Pyrometer Assembly

The Morgan Blue Lightning Thermocouple Sheaths offer superior protection, excellent service life, quick response and ease of use for aluminum and other non-ferrous melting and holding applications.

Morgan Blue Lightning Thermocouple Sheaths are available with either a ½” BSP, ¾” NPT pipe or without a pipe as a straight ceramic sheath for higher temperature copper applications. The pipe versions are also available as a complete pyrometer assembly to help speed-up installation and reduce labour costs.

Design Feature

  • Robust Design
  • Non-Wetting Chemistry
  • Highly Conductive
  • Simple Design
  • Integral Coating
  • Assembly Available

Advantage

  • Long Service Life
  • Ease of Cleaning
  • Low Dross Build-Up
  • No Metal Contamination
  • Rapid Response Times
  • Reduced Fuel Usage
  • Good Thermal Shock Resistance
  • Quick Change Out
  • No Coating Required
  • Minimal Labor and No Downtime

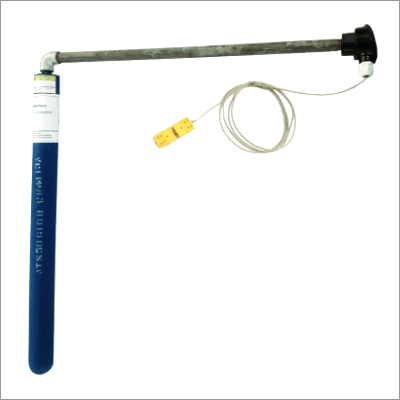

PYROMETER ASSEMBLY

The pyrometer assembly comes ready for the tough foundry environment and is inspected and tested prior to shipment. They are specifically designed to provide a quick and technician free change out of the existing pyrometer with no additional effort other than plugging in the new pyrometer and screwing on the sheath.

Assembled, Tested and Includes

  • Blue Lightning Thermocouple Sheath
  • Thermocouple (Type K)
  • Horizontal pipe and fittings
  • Junction head and connectors
  • Stainless sheathed lead (2m)
  • Male connector
  • Female connector (for connection to furnace)

CHOOSING THE CORRECT LENGTH

Fixed Pyrometer - A pyrometer is normally recommended to be long enough to measure the temperature 2/3 from the top of the crucible.

Floating Pyrometer – ATS50329 Blue Lightning Thermocouples are often chosen to measure 100mm (4”) from the top of the melt.

OPTIONS

Pyrometer Sheath Only

Complete Assembly

Outside Diameter (mm)

Length(mm)

Length(in)

1/2” BSP Pipe

3/4” NPT Pipe

No Pipe 25mm hole

ATS50329

ATS50329WA

50

329

13




ATS50486

ATS50486WA

50

486

19




ATS50639

ATS50639WA

50

639

25




ATS50791

ATS50791WA

50

791

31




ATS50943

ATS50943WA

50

943

37




ATS501096

ATS501096WA

50

1096

43




ATC50329

ATC50329WA

50

329

13




ATC50486

ATC50486WA

50

486

19




ATC50639

ATC50639WA

50

639

25




ATC50791

ATC50791WA

50

791

31




ATC50943

ATC50943WA

50

943

37




ATC501096

ATC501096WA

50

1096

43




VG44305

Not Available

44

305

12




VG44457

Not Available

44

457

18




VG44610

Not Available

44

610

24




VG44762

Not Available

44

762

30




VG44762

Not Available

44

914

36




CARE AND USE

Ensure that the Blue Lightning Thermocouple Sheaths are completely screwed into the fitting and that the thermocouple is long enough to make contact with the bottom of the pyrometer sheath. TIP: Apply thread sealing compound to the threads to avoid oxidation and possible premature failure.

Gently preheat the sheath prior to immersion into the molten metal bath to minimize thermal shock and eliminate any trapped moisture.

FAILURE TO PREHEAT THE THERMOCOUPLE CAN CAUSE PREMATURE FAILURE AND POTENTIAL INJURY.

At the end of every shift, be sure to gently clean the sheath of any dross or other buildup to ensure accurate temperature readings and to increase the life of the sheath.
